Hammers

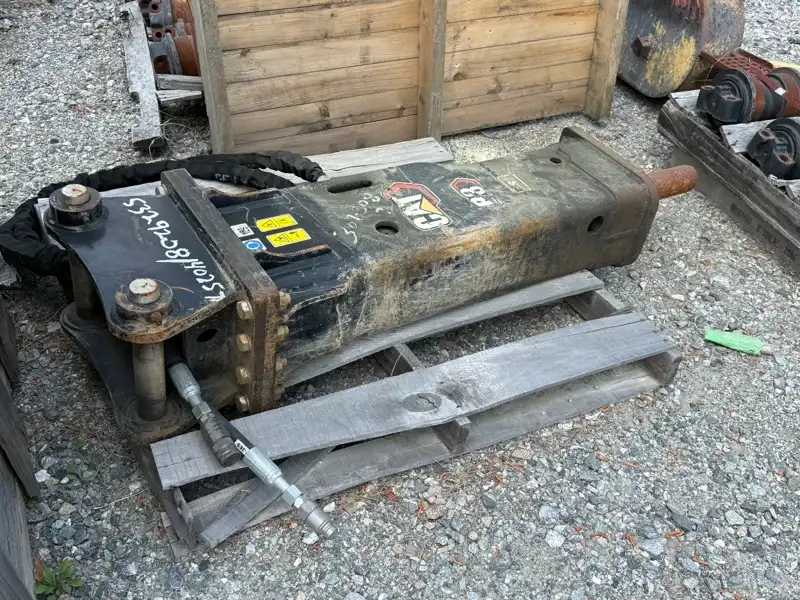

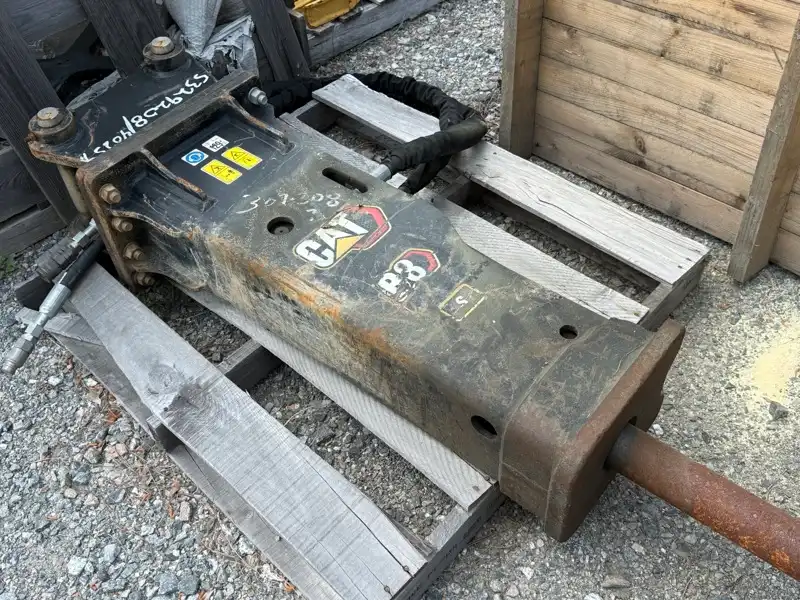

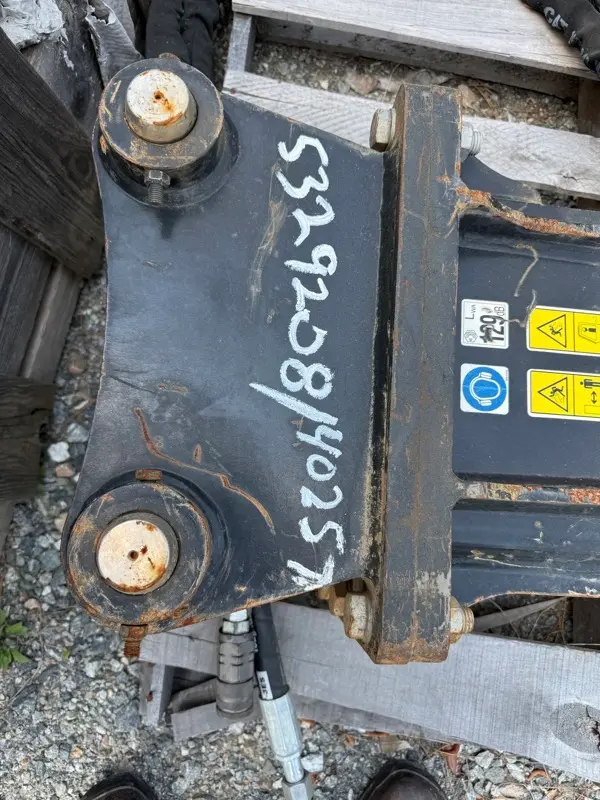

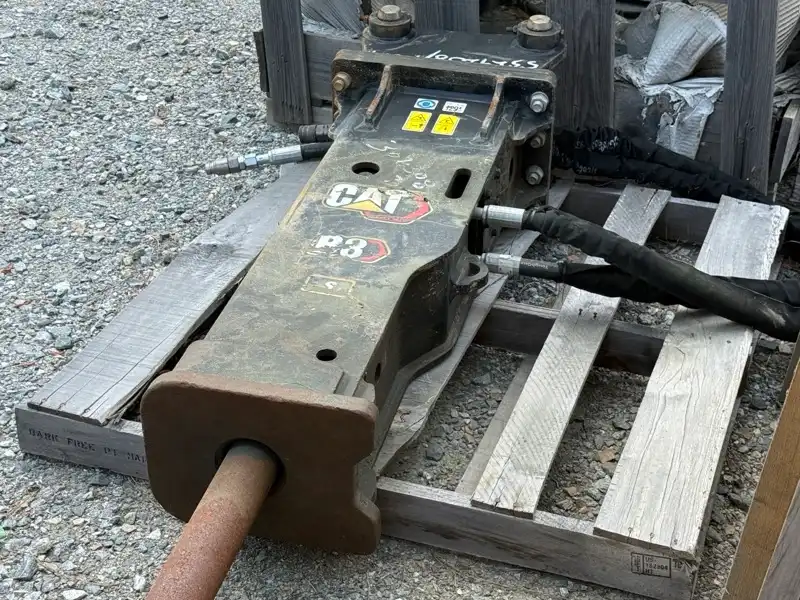

B8 Hammer
Part Number
5329208
Manufacturer
Caterpillar
Seller
Yancey Bros
Model
B8s
Description from Seller
B8 Hammer; Part Number: 5329208
Weight
750 lb
Height
55.2 in
Width
12.4 in
Length
17.3 in
Attachment Pin Diameter — Stick
2 in
Condition
Good
Energy Class
848.2 ft·lbf
Height (Without Tool)
41.1 in
Impact Frequency (Max)
800 bpm
Impact Frequency (Min)
400 bpm
Interface Type
Skid Steer Coupler
Minimum Carrier Weight
13999.3 lb
Minimum Operating Pressure
1704.1 psi
Operating Weight (with tool)
758.4 lb
Optimal Hydraulic Flow (Max)
23.8 gpm
Optimal Hydraulic Flow (Min)
13.2 gpm
Required Hydraulics
1st Auxiliary
Rotation
133°
Stored Height
55.2 in
Tool Shaft Diameter
3 in
Working Length
14.1 in
Fits these machines
226D3, 232D3, 236D3, 239D3, 242D3, 246D3, 249D3, 250, 253, 255, 259D3, 260, 262D3, 265, 270, 270XE, 272D3, 272D3 XE, 275, 275XE, 279D3, 285, 285XE, 289D3, 299D3, 299D3 XE, 306, 306.5, 307.5, 308, 309, 415, 416, 420, 420XE, 424, 426, 430, 434, 440, 444
Compatibility has not been verified by Seller. Buyer is responsible for confirming fit.
